Sitemap

Overview

Tables and charts are useful for fleet-wide analysis, but some problems are spatial - a row of miners overheating because of an airflow issue, a rack drawing more power than expected, or a section of the facility with disproportionate error rates. The Sitemap lets you see your facility the way it's physically laid out, with heatmap overlays for temperature, hashrate, and power consumption, so you can spot patterns that would be invisible in tabular data.

The Sitemap is accessible from the Sitemap tab in the Commander navigation.

Understanding the Sitemap

The Sitemap is how you tell Commander where every miner lives in your facility. It mirrors your physical layout — buildings, containers, rows, racks — so you can monitor and manage your fleet spatially, not just as a flat list of IP addresses.

The key idea is simple: everything is a grid, and grids go inside other grids.

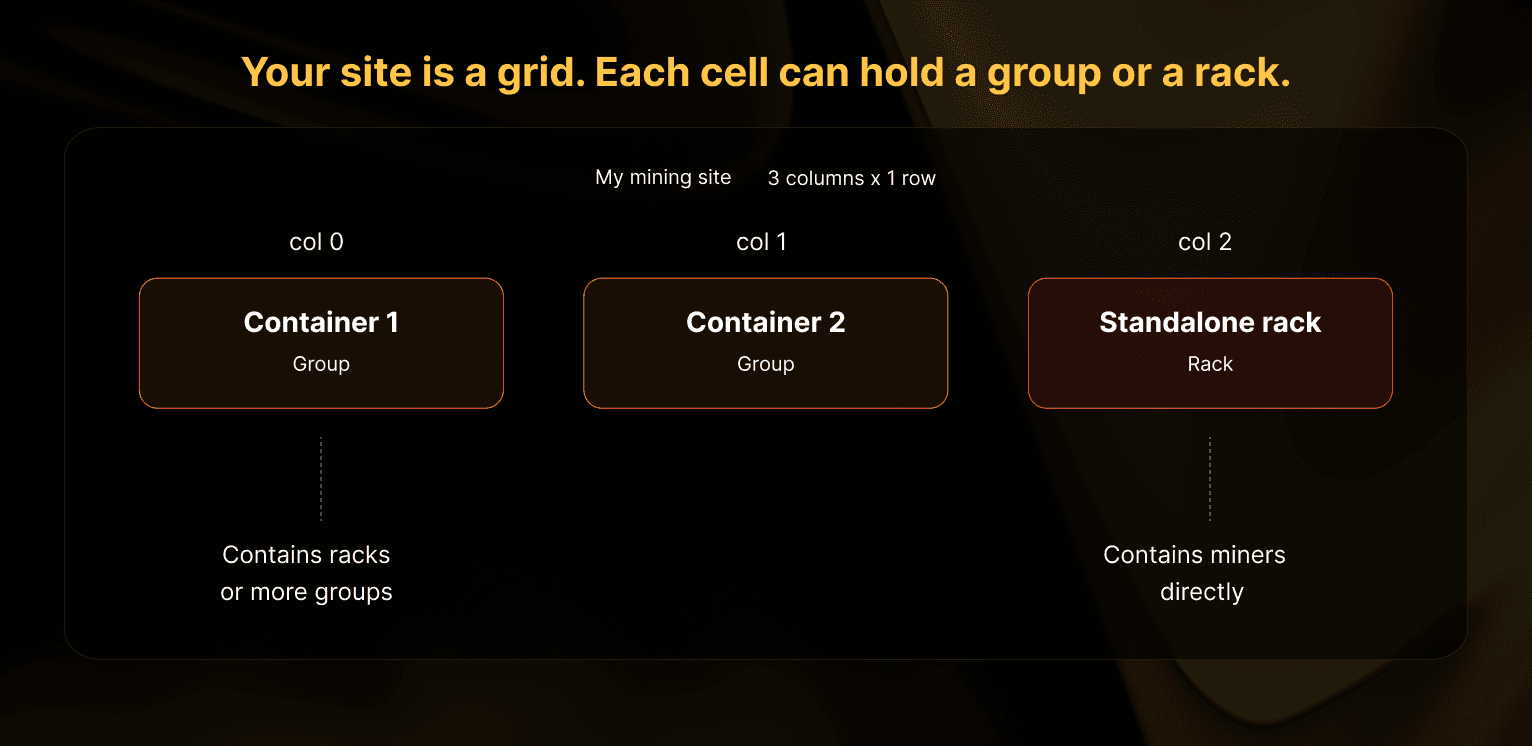

The Site grid

Your site is the top-level grid. You define how many columns and rows it has, and then place items into those cells. Items come in two types:

Groups — organize things together (like a building, container, or room)
Racks — hold your actual miners

Think of the site grid as a blank table. You choose its size (e.g. 3 columns by 1 row), and then drop groups or racks into whichever cells you want. You don't have to fill every cell.

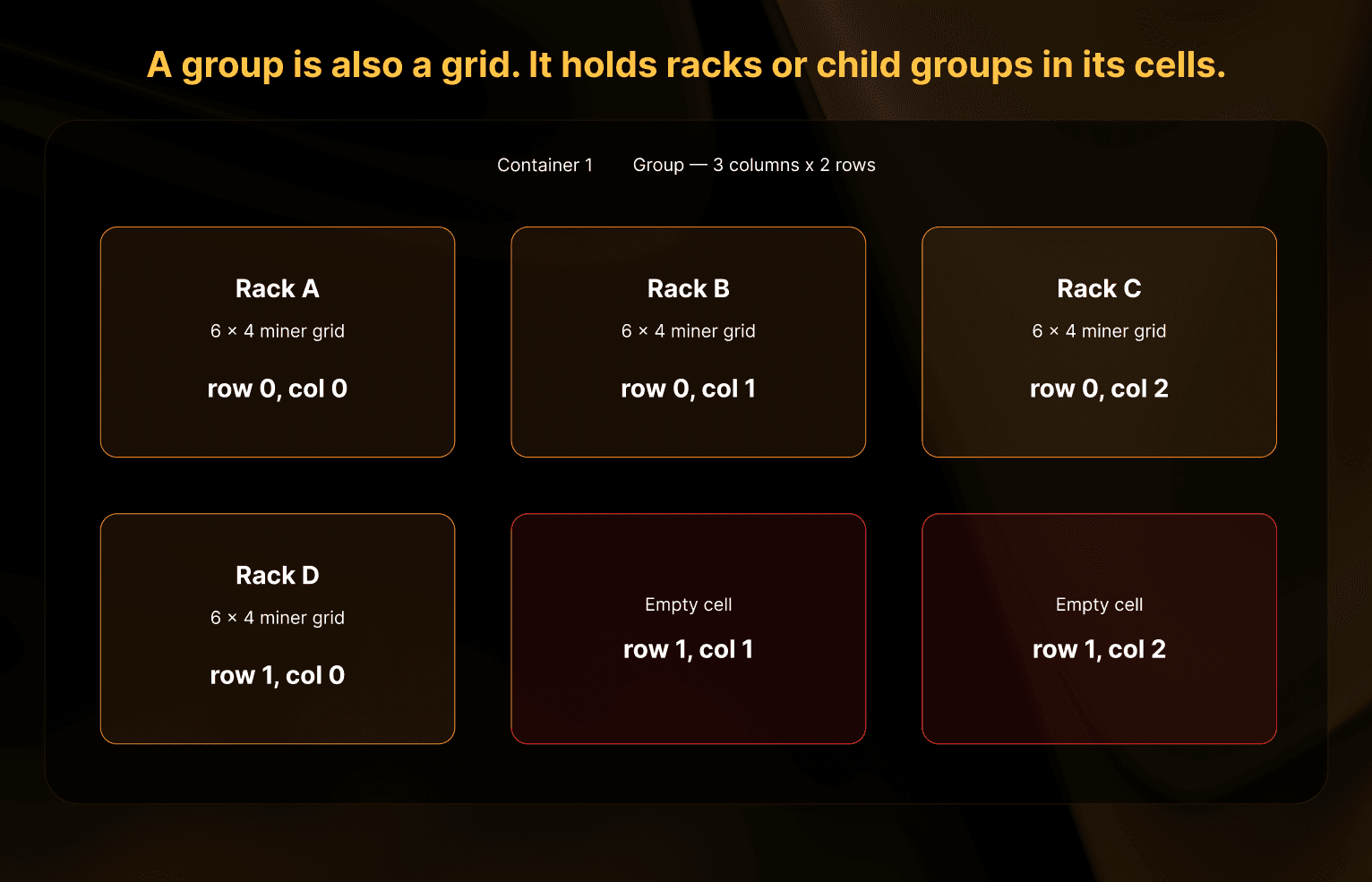

Groups are grids too

When you create a group, it gets its own grid inside it. You define the number of columns and rows for that group, and then place racks (or more groups) into its cells.

In the example above, "Container 1" is a group with a 3×2 grid. Four of its six cells contain racks, and two cells are left empty. Empty cells are perfectly fine — your grid size just needs to be large enough to hold everything you want to place inside.

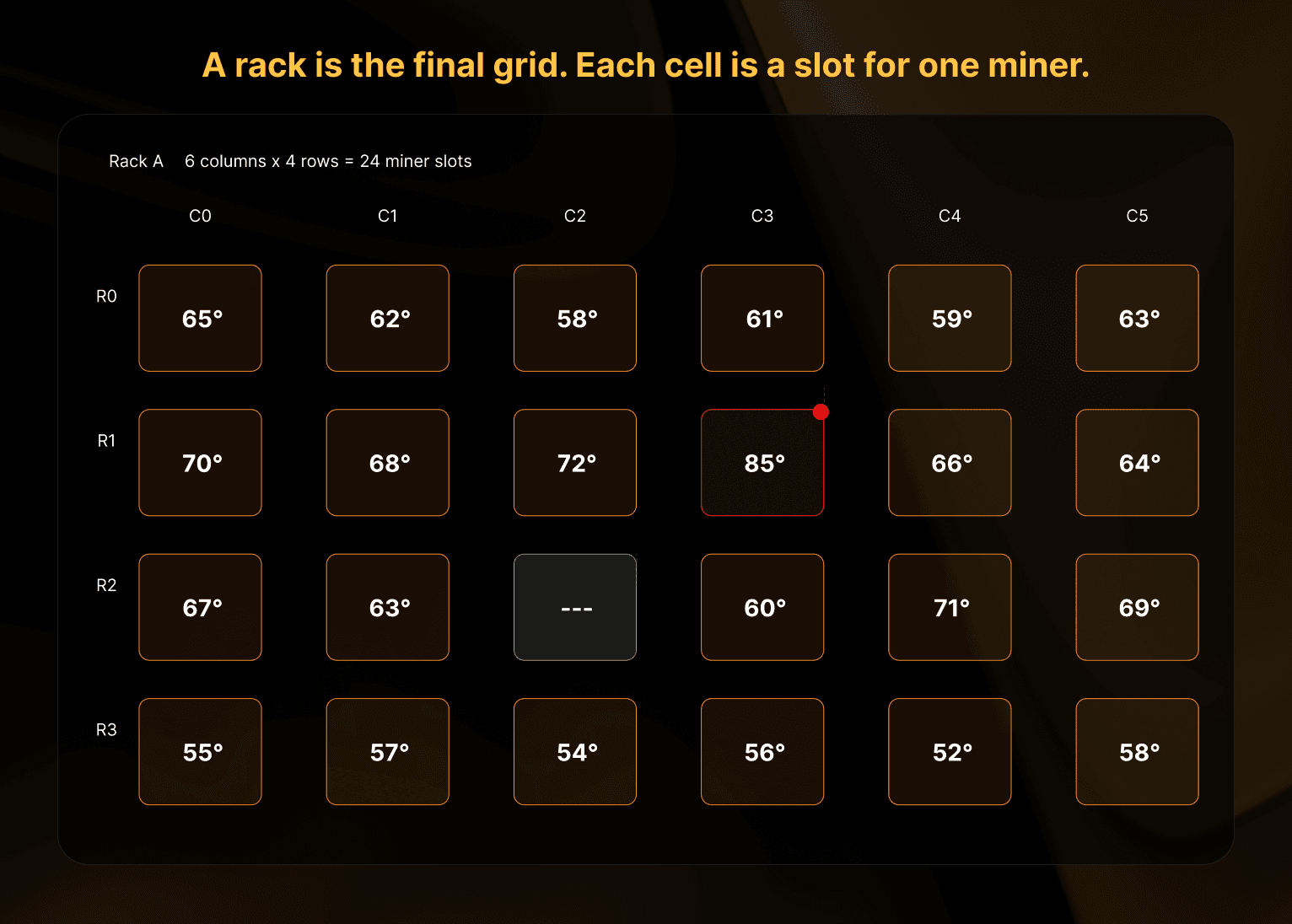

Racks are where the miners live

A rack is the final type of grid. Instead of holding other groups or racks, each cell in a rack holds one miner.

You define a rack's size based on its physical layout. For example, if a rack has 6 shelves with 4 miners per shelf, you'd set it to 4 columns by 6 rows (24 miner slots total). Commander color-codes each cell as a heatmap so you can visually spot issues — a hot miner (shown in orange) stands out immediately, and empty slots are shown with a dashed border.

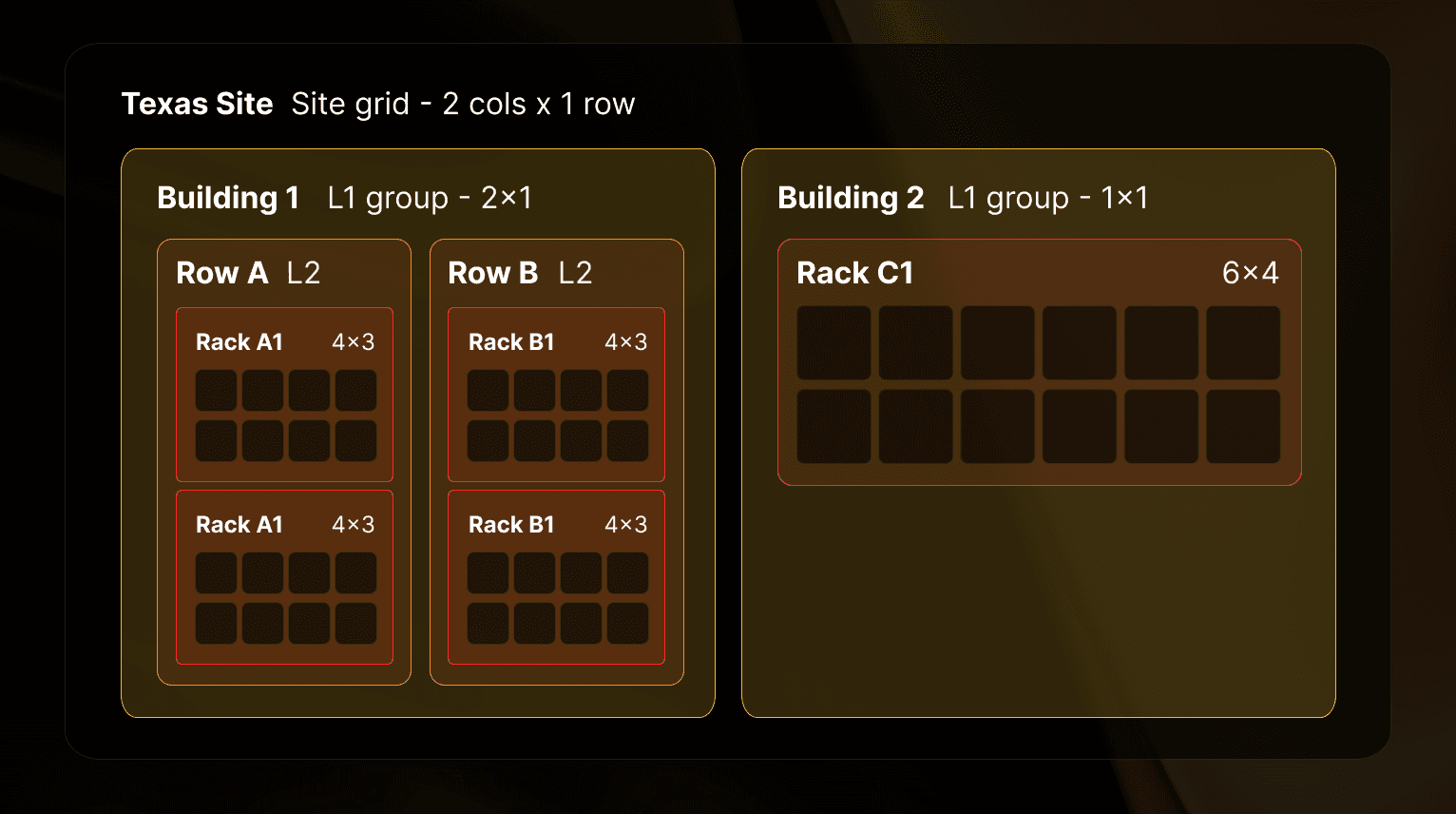

Putting it all together

Here's how the three types of grids nest together in a real facility:

Site grid (top level)
├── Building 1 (level 1 group — its own grid)
│   ├── Row A (level 2 group — its own grid)
│   │   ├── Rack A1 (miner grid: 4 cols × 3 rows)
│   │   └── Rack A2 (miner grid: 4 cols × 3 rows)
│   └── Row B (level 2 group — its own grid)
│       ├── Rack B1 (miner grid: 4 cols × 3 rows)
│       └── Rack B2 (miner grid: 4 cols × 3 rows)
└── Building 2 (level 1 group — its own grid)
    └── Rack C1 (miner grid: 6 cols × 4 rows)

Notice how Building 2 has racks placed directly inside it (no level 2 groups needed), while Building 1 uses level 2 groups to add an extra layer of organization. Both patterns work in the same site.

Nesting rules

Groups can hold other groups, but only up to two levels deep. Here's what's allowed and what's not: Two valid patterns:

Site → Level 1 group → Level 2 group → Racks — Use this when you need an extra layer of organization. For example: Site → Building → Room → Racks.
Site → Level 1 group → Racks — Use this when one layer of grouping is enough. For example: Site → Container → Racks.

You can even mix both patterns in the same site. Some groups might have level 2 sub-groups, while others hold racks directly.

What's not allowed: Three levels of groups (e.g. Building → Floor → Room → Racks). If you need this, combine two levels into one — for example, name your level 2 group "Floor 2 - Room A" instead.

Navigating the Sitemap page

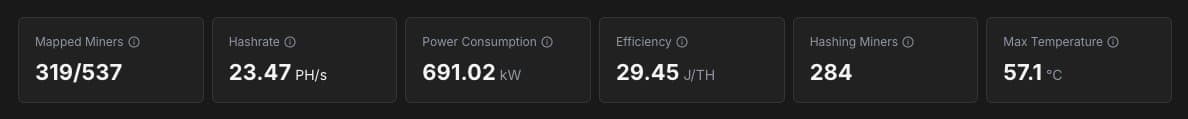

Site-Level KPIs

At the top of the Sitemap page, aggregate KPI cards display performance metrics for the selected Site:

Mapped Miners (Site miners with a Sitemap location associated / Total miners in the Site)
Hashrate (TH/s)
Power Consumption (MW)
Efficiency (J/TH)
Hashing Miners (count)
Avg Temperature (°C)

All KPIs above are aggregated only for miners from the Site selected which also have been mapped to a position inside the Sitemap

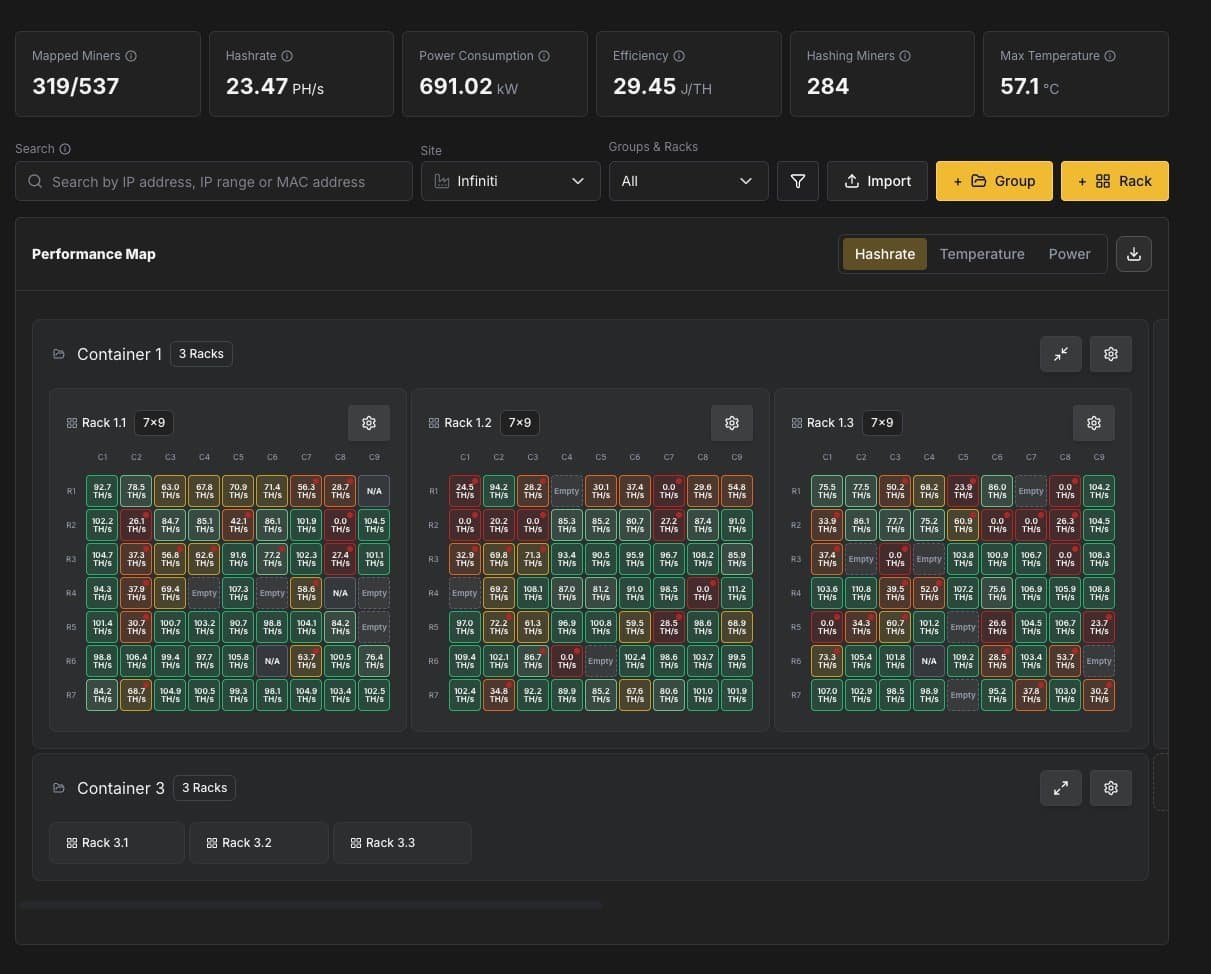

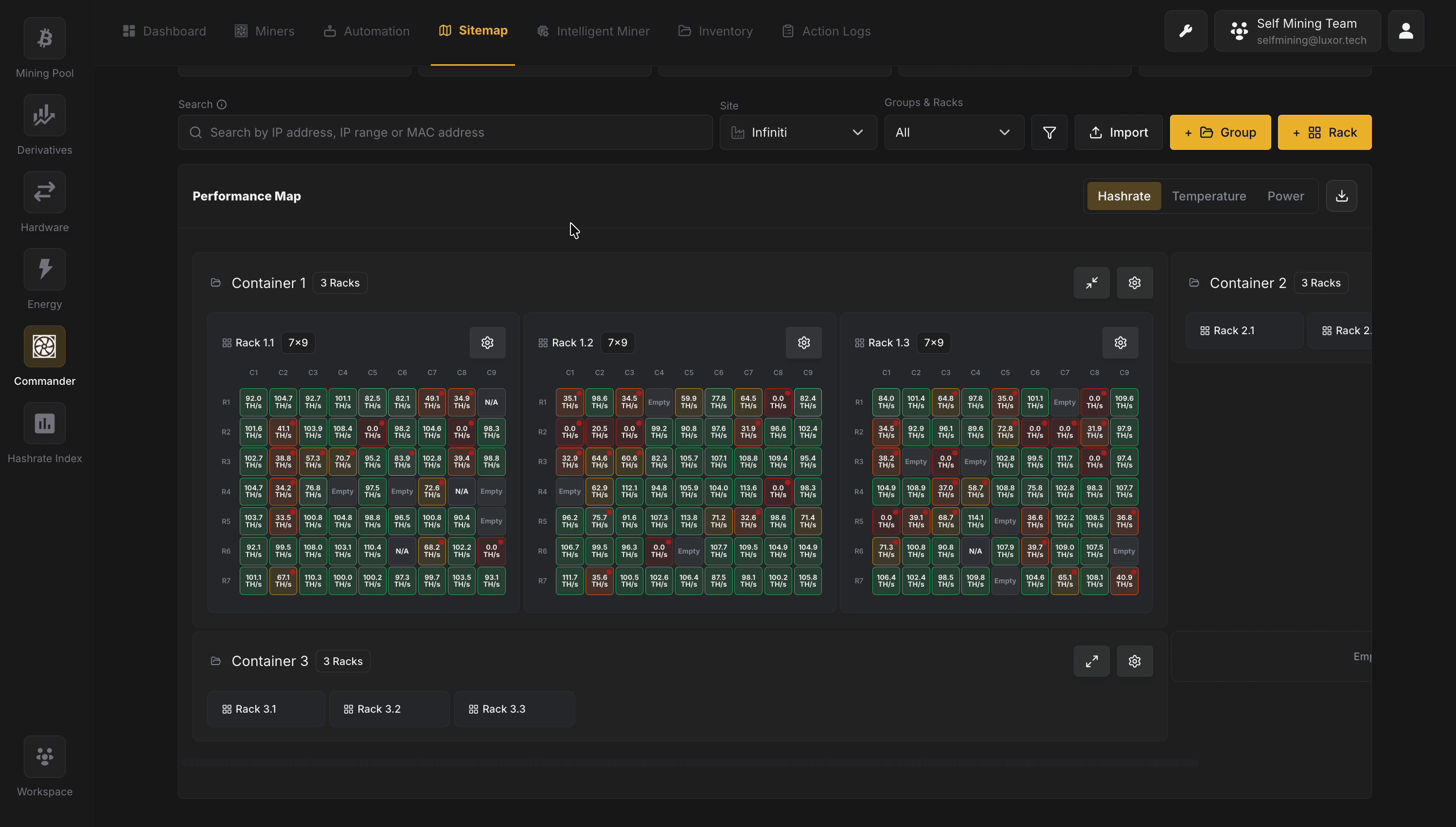

Performance Map

The main area of the Sitemap displays your Groups and Racks with a grid view showing each miner slot. You can switch between three heatmap overlays using the tabs above the grid:

Overlay	Description
Temperature	Color-codes each miner slot from blue (cool) to red (hot) based on the miner's avg board temperatures.
Hashrate	Color-codes slots based on the miner's current hashrate relative to its expected nameplate output
Power Consumption	Color-codes slots based on power draw relative to its expected nameplate consumption

Empty slots are displayed as "Empty" in grey, indicating positions where no miner is assigned.

Inspecting a Miner

Hover the mouse over any occupied slot in the grid to open a detail panel on the right side of the screen. The panel displays:

Position: The miner's row and column within the rack (e.g., Row 4, Column 1)
Rack Name: The rack the miner belongs to (e.g., P7C)
Parent Group: The group the rack is part of (e.g., Panel 7)
Temperature: Current temperature with a visual gauge showing the temperature relative to the safe range
Hashrate: Current hashrate in TH/s
Power Consumption: Current power draw in Watts
Error Status: Healthy, Failing, or N/A
Hashing Status: Hashing, Idle, Offline, or N/A
IP Address: The miner's network address
MAC Address: The miner's hardware address
Model: The miner hardware model
Nameplate Hashrate: The miner's expected factory settings hashrate
Nameplate Power: The miner's expected factory settings power consumption

The panel also provides quick actions:

View Miner Details: Navigate to the full Miner Details page.
Configure: Open the miner configuration dialog.

Managing Groups

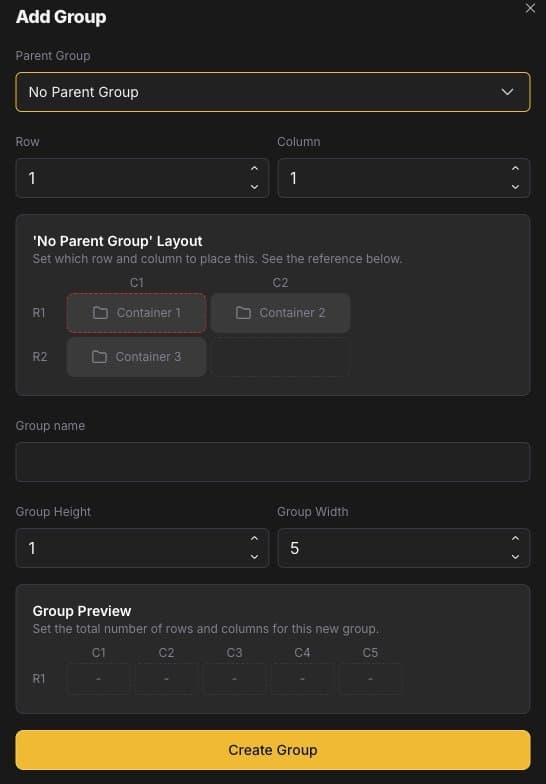

Adding a Group

Click + Group to create a new group.

The Add Group dialog allows you to configure:

Group Name: A descriptive name for the rack (e.g., "P7A", "my rack").
Parent Group: The parent group the group to be created belongs to. Select an existing group or choose "No Parent Group" for a standalone rack.
Row and Col coordinates: They specify where to locate the new group inside the parent group, in case one is specified, or inside the top-level grid, in case no parent group is specified.
Total Width: The number of rows in the group grid (e.g., 10, 21).
Total Height: The number of columns in the group grid (e.g., 4, 10).
Preview: A visual preview of the grid layout updates as you adjust rows and columns.

Managing Racks

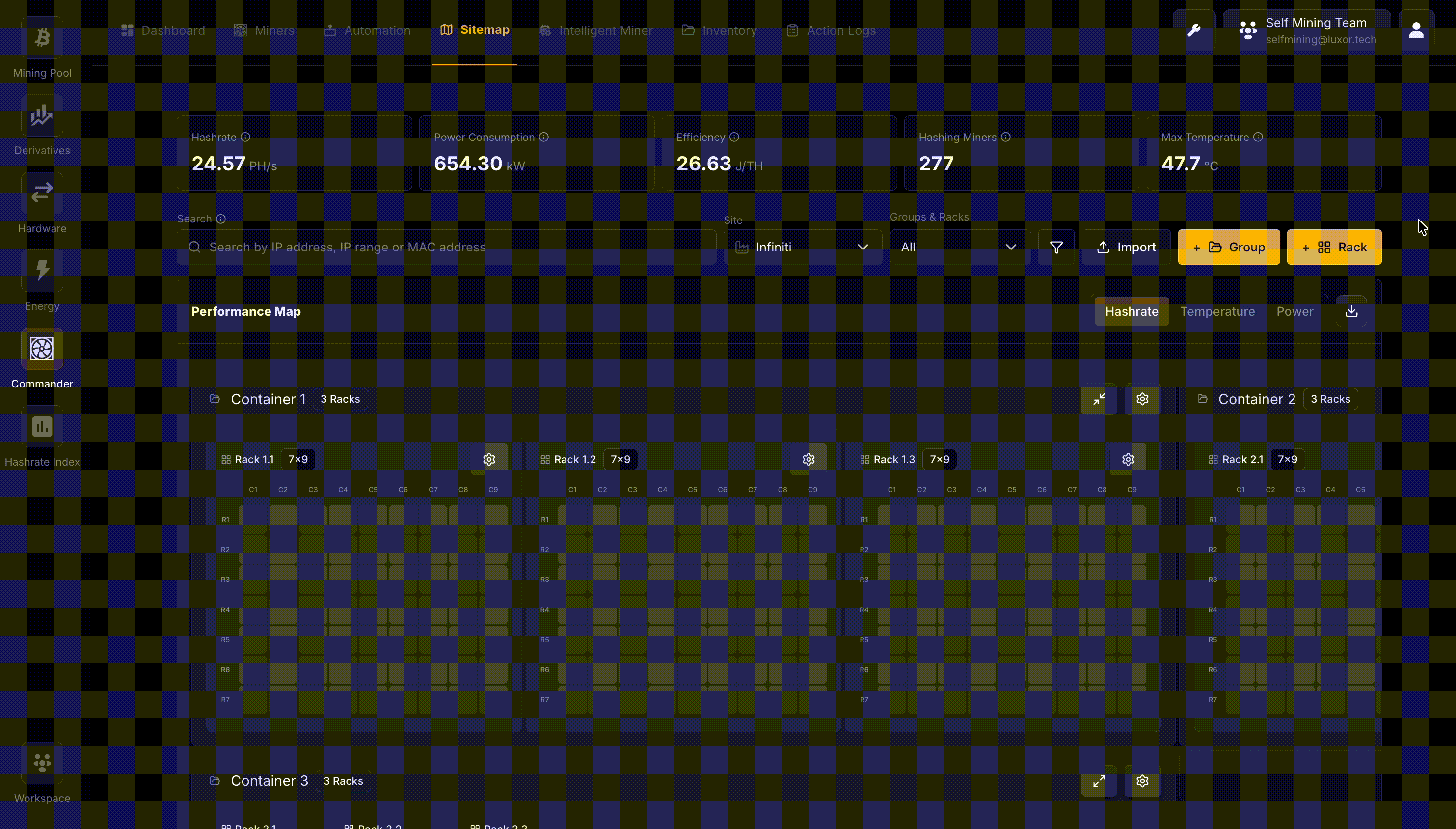

Adding a Rack

Click + Rack to create a new rack. The Add Rack dialog allows you to configure:

Rack Name: A descriptive name for the rack (e.g., "P7A", "my rack").
Parent Group: The group the rack belongs to. Select an existing group or choose "No Parent Group" for a standalone rack.
Row and Col coordinates: They specify where to locate the new rack inside the parent group, in case one is specified, or inside the top-level grid, in case no parent group is specified.
Total Rows: The number of rows in the rack grid (e.g., 10, 21).
Total Columns: The number of columns in the rack grid (e.g., 4, 10).
Preview: A visual preview of the grid layout updates as you adjust rows and columns.

Miner IP Assignment

When creating a rack, you need to associate miners with slots. Commander supports two assignment modes:

Auto-assign: Provide an IP address range (e.g., 10.206.0.1-100) and Commander will automatically assign miners to rack slots based on their IP addresses.
- Allocation Order: Controls how miners are placed into slots when some IPs in the range don't have a miner. Non-sequential (no gaps) compacts miners into consecutive slots with no empty spaces - if your range is .1-.20 and only .1, .3, and .5 have miners, they'll appear in slots 1, 2, 3. Sequential preserves positional consistency by leaving gaps for missing IPs - the same three miners would appear at positions 1, 3, and 5, with slots 2 and 4 empty. Use Sequential if slot position should match the last octet of the IP address.
- Fill Direction: Choose between "Left to Right, Top to Bottom" or other fill patterns to match your physical wiring layout.
Manual entry: Manually assign specific IP addresses to individual rack slots.

After configuring the rack layout and IP assignments, click Scan to discover miners at the specified IPs and populate the rack grid.
